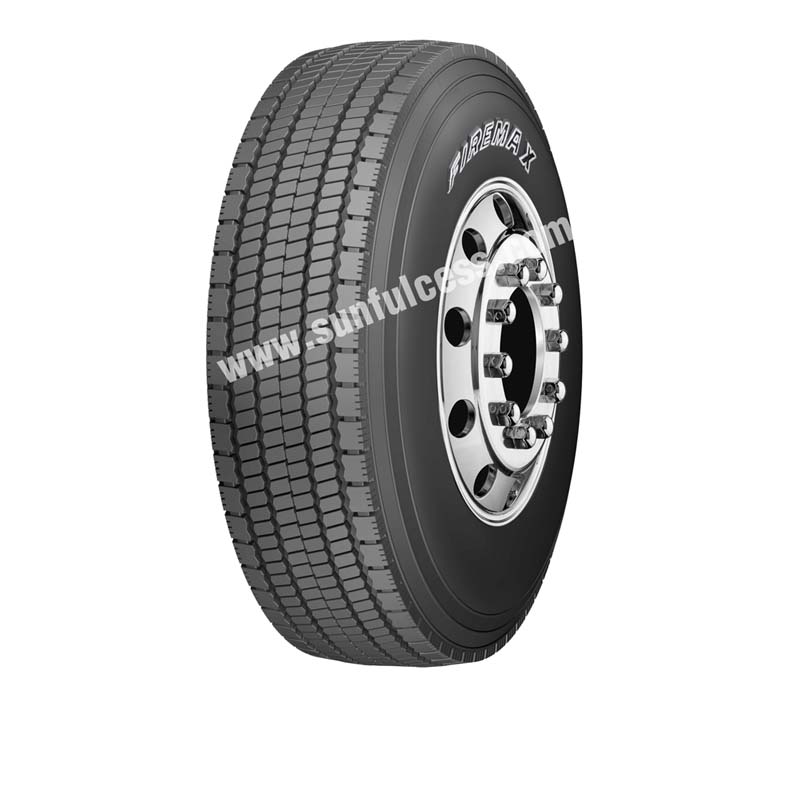

KDH21

Features & Benefits:

● Four longtitudinal grooves offer excellent handling stability and ride comfort
● Open shoulder and horizontal pattern improve driving and braking performance
● Wide surface reduces load pressure and provides excellent driving stability
● Variable pitch tread design and narrow horizontal grooves effectively reduce tyre noise
Tyre SizePly RatingStd. RimTL/TTLoad IndexSpeed SymbolMax Pressure
(kPa)
Max Load (kg)Section Width
(mm)
Over Diameter
(mm)
Tread Depth
(mm)
12R22.5189TL152/149L9303550/3250300108520
295/80R22.5189TL152/149L8503550/3250298104419
315/80R22.5209TL156/153L8504000/3650312107620
