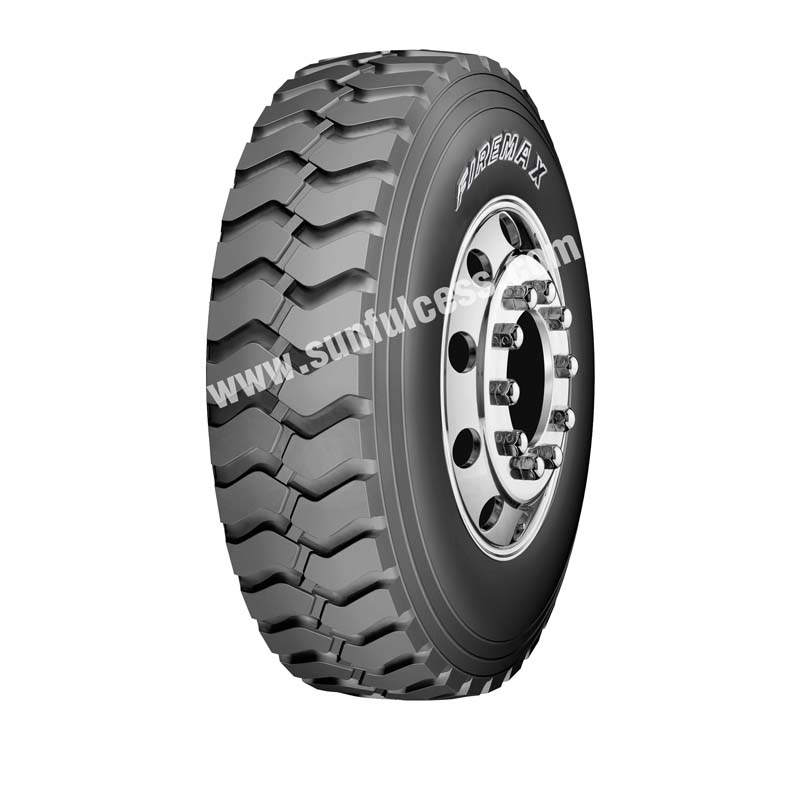

KDO14

Features & Benefits:

● The extra-deep tread provides long original life
● Aggressive multi-lug tread design improves off-road traction
● Interlocking lugs promote improved stability and smoother wear
● Open shoulder grooves deliver good self-cleaning properties and traction
● Special compounds ensures resistance to cuts, chips, tearing and irregular wear
● Reinforced carcass and bead design ensure good handlding and safety, high load capacity
Tyre SizePly RatingStd. RimTL/TTLoad IndexSpeed SymbolMax Pressure
(kPa)
Max Load (kg)Section Width
(mm)
Over Diameter
(mm)
Tread Depth
(mm)
11.00R20188TT152/149K9303550/3250293108520
12.00R20188.5TT154/151K8303750/3450315112223
12.00R20208.5TT156/153K9004000/3650315112223
