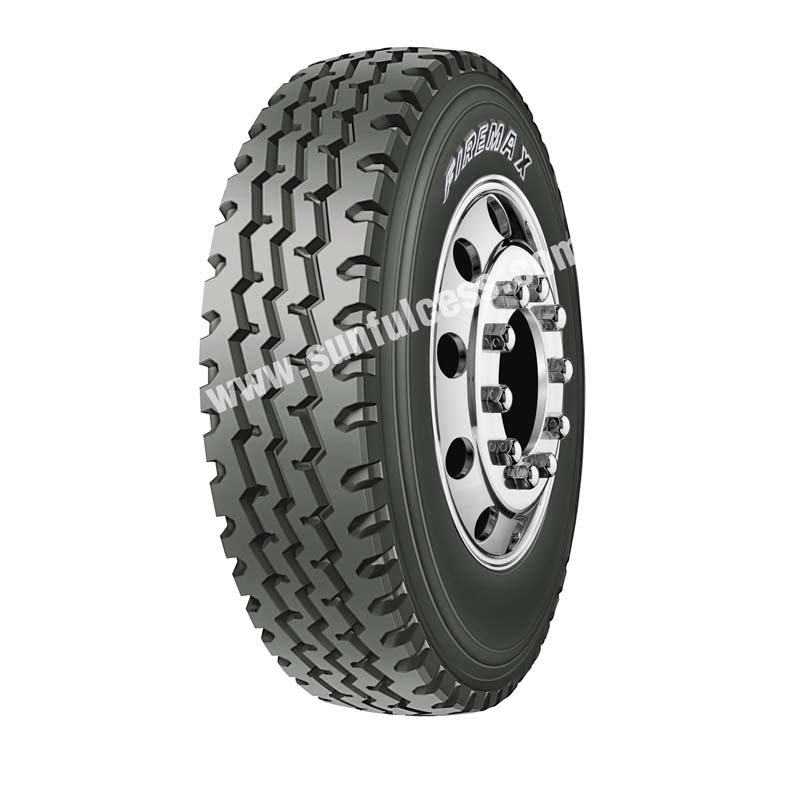

KTA01

Features & Benefits:

● Tread pattern pitch design reduces ride noise
● Cut and chip resistant tread compound for improved wear
● Rib siping design improves overall traction in wet conditions
● Enhanced tread bead design provides excellent load capability
● Three wide grooves provide excellent grip and all-season performance
● Large open shoulder grooves for improved traction and heat dissipation

Tyre Size	Ply Rating	Std. Rim	TL/TT	Load Index	Speed Symbol	Max Pressure (kPa)	Max Load (kg)	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	RR	WG	NG (dB)
7.00R16LT	14	5.50F	TT	118/114	L	770	1320/1180	200	775	11	B	C	73
7.50R16LT	14	6.00G	TT	122/118	L	770	1500/1320	215	805	12	B	C	73
8.25R16LT	14	6.50H	TT	126/122	L	670	1700/1500	235	855	12.5	B	C	73
8.25R16LT	16	6.50H	TT	128/124	L	770	1800/1600	235	855	12.5	B	C	73
8.25R20	14	6.5	TT	136/134	K	830	2240/2120	236	974	14.5	B	C	73
8.25R20	16	6.5	TT	139/137	K	930	2430/2300	236	974	14.5	B	C	73
9.00R20	16	6.5	TT	144/142	L	900	2800/2650	258	1019	15	B	C	73
10.00R20	18	7.5	TT	149/146	K	930	3250/3000	278	1054	16.5	B	C	73
11.00R20	18	8	TT	152/149	K	930	3550/3250	293	1085	16.5	B	C	73
12.00R20	18	8.5	TT	154/151	K	830	3750/3450	315	1125	17	B	C	73
12.00R20	20	8.5	TT	156/153	K	930	4000/3650	315	1125	17	B	C	73
12.00R24	20	8.5	TT	160/157	K	900	4500/4125	315	1226	16	B	C	73
11R22.5	16	8.25	TL	148/145	M	830	3000/2750	279	1054	15	B	C	73
12R22.5	18	9	TL	152/149	L	930	3550/3250	300	1085	17	B	C	73
315/80R22.5	20	9	TL	156/153	L	850	4000/3650	312	1076	15	B	C	73
13R22.5	20	9.75	TL	156/153	L	850	4000/3650	320	1124	16	B	C	73
